| ![](/syspix/trans.gif) | HCC-Easy PC-based USB data acquisition for analog tension signals | ![](/syspix/trans.gif) |

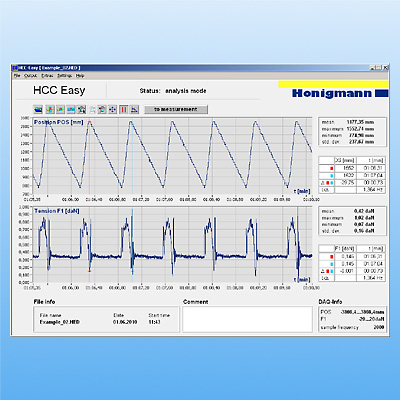

![](/bilder/artikel/70307091_Easy_E_1a_med.jpg) | | • 2 measuring channels ( -10 to +10V ), freely scalable • RealTime statistics during recording • standard statistics in analysis • zoom and cursor functions • filter functions, FFT, data export • USB connection box with 16 bit A/D-converter
HCC-EASY: data acquisition on a high level... combined with easy use and very short training period |
|
Description | ![](/syspix/trans.gif) |
HCC-Easy is a complete package of hardware and software for data acquisition and analysis of analog signals.
![](https://www.honigmann.com/syspix/trans.gif) Configuration and operation are very simple and clearly - EASY.
![](https://www.honigmann.com/syspix/trans.gif) The software was designed especially for tension measurement. The user can record, store and analyse tension signals without PC knowledge.![](/syspix/trans.gif) HCC-Easy offers the formidable powerful functional range of a high-end professional system. The special property of this software is its easy and uncomplicated handling - just Easy.
|
Special features | ![](/syspix/trans.gif) |
Data acquisition • 2 measuring channels ( -10 to +10V ), values displayed in physical unit by scaling • sample frequency selectable: 100Hz - 200Hz - 1kHz - 2kHz • unlimited measuring time • scope mode: measurement without storing, e.g. for installation or monitoring purposes • realtime display of measured values graphically and digitally, indicating the actual value in tension units • realtime statistics during measurement as well as in analysis: mean value, minimum, maximum and standard deviation
Analysis of measured data • extensive zoom functions • cursor functions • signal filter, freely definable • FFT: integrated frequency analysis
Documentation • export data into ASCII format serving the possibility of data compression for export of big measuring files • printout • copy diagrams to clipboard • comment field for each measurement
General • selectable user interface english / german
Hardware DAQ 16 USB 50: • A/D-converter with 16 bit resolution • USB 2.0 • connection box with screw terminals • set for mounting rail installation optional available • incl. USB connection cable |
PreView | ![](/syspix/trans.gif) |
Functions | ![](/syspix/trans.gif) |
![](/bilder/artikel/69047001_Easy-Export_E_tn.jpg) InfoZoom | ![](/syspix/trans.gif) | ASCII export • for using the measuring data on external software, e.g. Microsoft Excel® • exports the measuring data of the whole measurement or only the measuring data in the zoomed view • exports the statistics of multiple measurements • data compression on large meaasurement files |
![](/bilder/artikel/69047002_Easy-Clipboard_tn.jpg) InfoZoom | ![](/syspix/trans.gif) | Clipboard • copy diagrams to clipboard for further processing in other software
|
LiveDemo | ![](/syspix/trans.gif) |
![](https://www.honigmann.com/bilder/content/LiveDemoGev_EN_tn.jpg) |
|
HCC-Easy offers the formidable powerful functional range of a high-end professional system.![](/syspix/trans.gif) The special property of this software is its easy and uncomplicated handling - just Easy ...![](/syspix/trans.gif) To convincingly demonstrate this we can show you HCC-Easy via internet in a LiveDemo. Just like it would be in an on-site presentation you will get an individual live-demonstration, tailored to your questions and your particular matters.
